Interlock

Controlling the logic of opening and closing airlock doors


Cleanroom Interlock Series ILx

PAL - MAL - PB - PT

Configurable interlock in N.O and N.C

Color:

White

In Stock

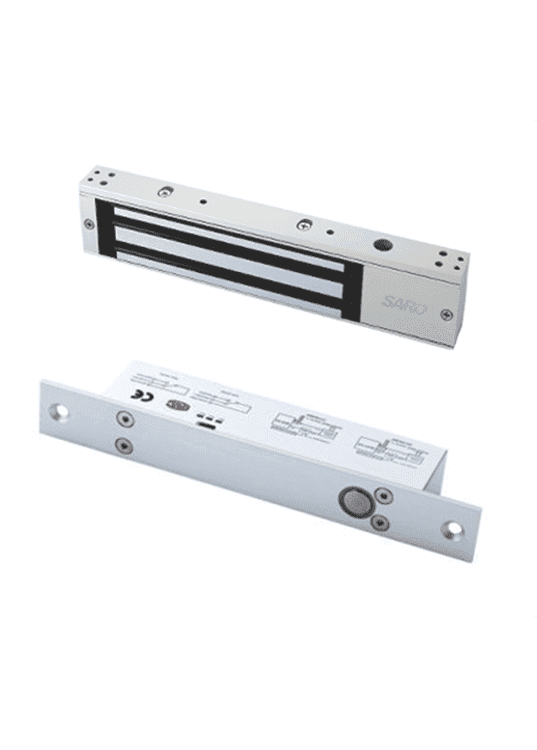

The ILx Series interlocks are designed to manage the doors of various airlock types, including PAL, MAL, pass boxes, and pass-throughs. This series includes a controller, buttons, locks, adapters, and connection sockets, providing a comprehensive solution for airlock management.

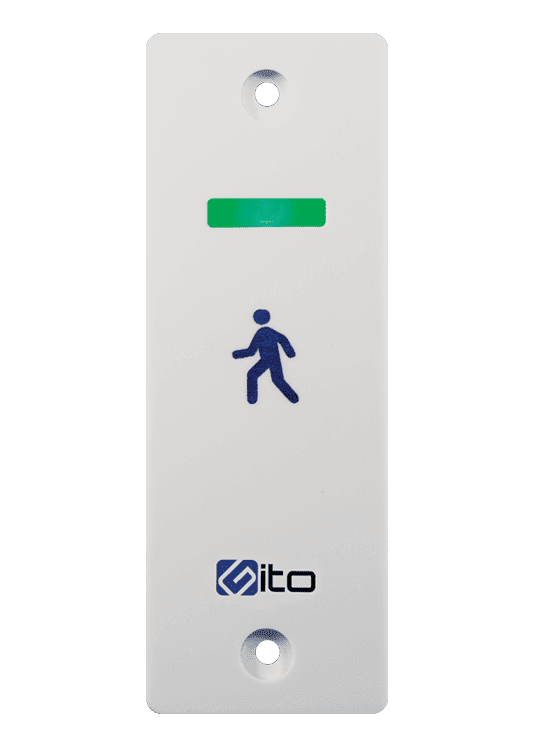

The interlock buttons are available in three types:

Touch buttons: These operate without mechanical parts and feature a two-color LED strip to indicate the interlock status.

Non-contact buttons: Activated by bringing your hand within a range of 4 to 15 cm (adjustable), they also include a two-color LED strip to show the interlock status.

Mechanical buttons: These are equipped with special steel keys and a single-color LED bar to indicate the status of the interlock function.

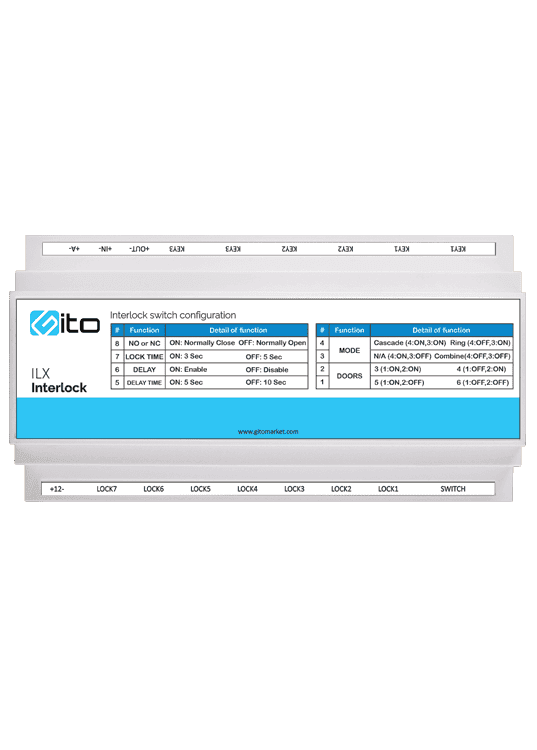

The ILx Series interlocks can be configured in either Normally Open or Normally Closed modes. For airlock sterilization, the system can control ultraviolet (UV) lamps, and the sterilization delay time is adjustable. An internal buzzer provides an audio alarm, and external sirens can be connected to enhance the alarm sound.

All Gito interlock buttons are smart and eliminate the need for traditional break-glass emergency keys. By holding the button for an extended period, users can trigger an emergency or return to normal operation.

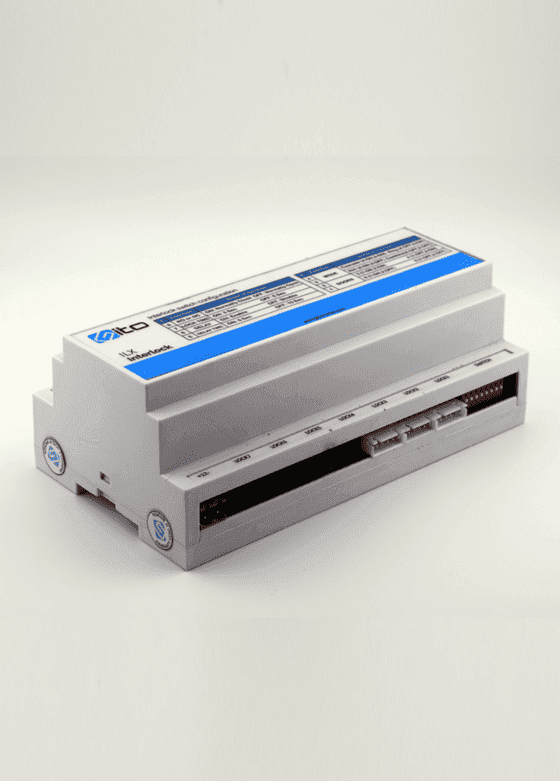

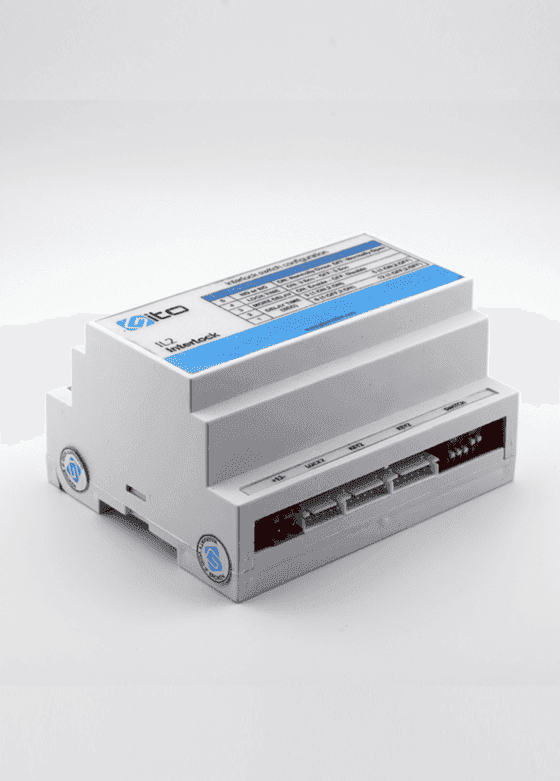

The Gito interlock controllers can manage between 2 and 7 doors, and by combining multiple controllers, an unlimited number of doors can be controlled, making the system ideal for pharmaceutical environments. The interlock logic and communication between doors can be programmed and customized during installation.
